Self-Testing#

Reachability Check#

The result of the self-test will be displayed here, and if an abnormality is detected (as in Figure 5 .60), the X stack X layer is displayed, and the drop-down box and the layer on the right can be used to view the exact location of the anomaly box. If no abnormality is detected (as shown in Figure 5 .61), the “Abnormal Results” display will be empty.

../../_images/391.jpg

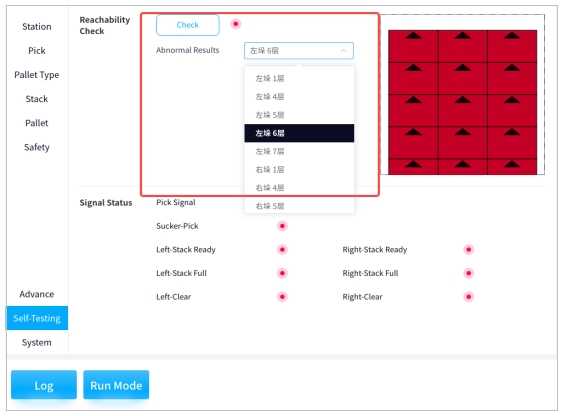

Figure 5.60 Reachability Check (anomaly)

../../_images/40.jpg

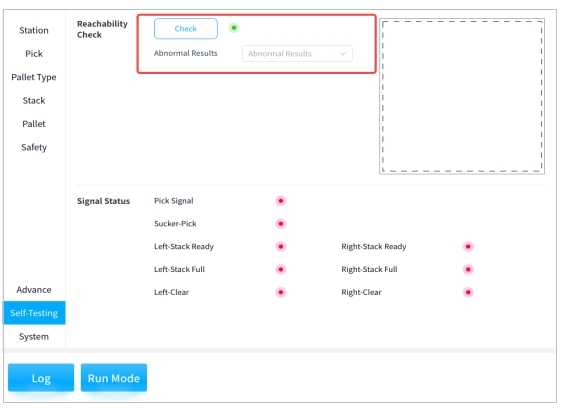

Figure 5.61 Reachability Check (normal)

Signal Status#

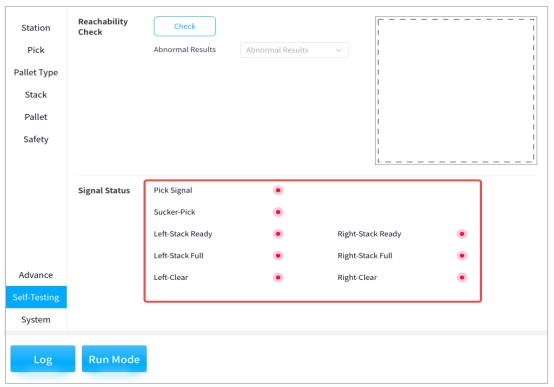

The status signals of the pickups, sucktion cup and pallets are displayed here as shown below

../../_images/411.jpg

Figure 5.62 Signal Status
