Product Description#
The DUCO DM-Cam2.5D smart camera integrates high-precision CMOS sensor, intelligent computing unit, and high-brightness LED components. It can be installed on the end of the DUCO GCR series collaborative robot, powered and communicated via the end connector cable, enabling a cable-free deployment package. It has built-in high-precision 2.5D positioning algorithms that can meet the needs of machine operation, pallet positioning, and material handling in various scenarios.
Product Features#
Rapid Deployment: Equipped with dedicated configuration software that is easy to learn and use, reducing deployment costs.
Cable-Free: Communication and power supply are achieved through the robot’s end connector, eliminating the need for a cable package.
Automatic Calibration: Automatic hand-eye calibration is achieved through intelligent calibration algorithms.
High Precision Positioning: High-precision 6-dof positioning correction is achieved by recognizing DM-Mark2D markers.
Product Parameters#
Model |
DM-CAM25D050GM16W2A |
Sensor Type |
CMOS, global shutter |
Image Type |
Mono |
Resolution |
2368 × 1760 |
Focal Length |
16 mm，motorized focus |
Light |
White |
Lens Cover Type |
Polarized lens cover |
Communication Protocol |
RS-485 |
Working Distance |
200-400mm, recommend:300 mm |
Standard Working Field of View |
200 mm × 150 mm @ 300mm |
Overall Positioning Error |
Error < 0.5mm when the distance from the captured point to the operating point is < 500mm |
Power Supply |
24 VDC |
Power Consumption |
|
Temperature |
Operating temperature 0 ~ 50°C, storage temperature -30 ~ 70°C |
Humidity |
20% ~ 95%RH without condensation |
Size |
131 mm × 74 mm × 61.3 mm |
Weight |
560 g |
Operation Interface#
Software Configuration Interface
Robot Vision Plugin Interface

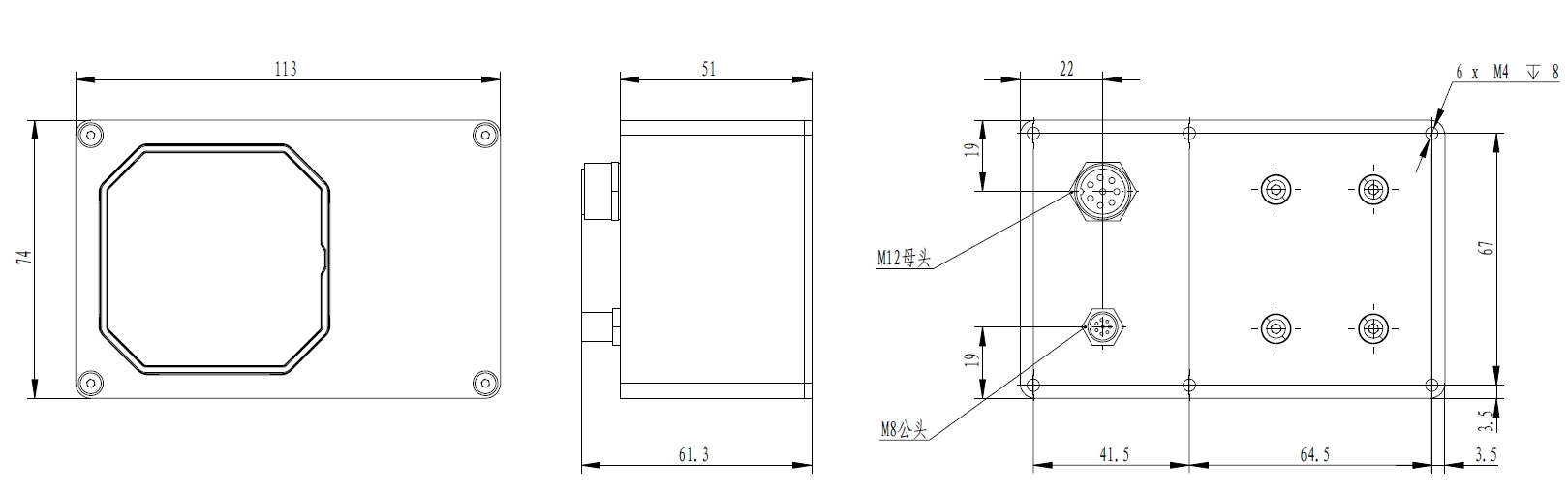

Product Size#
