Summarize#

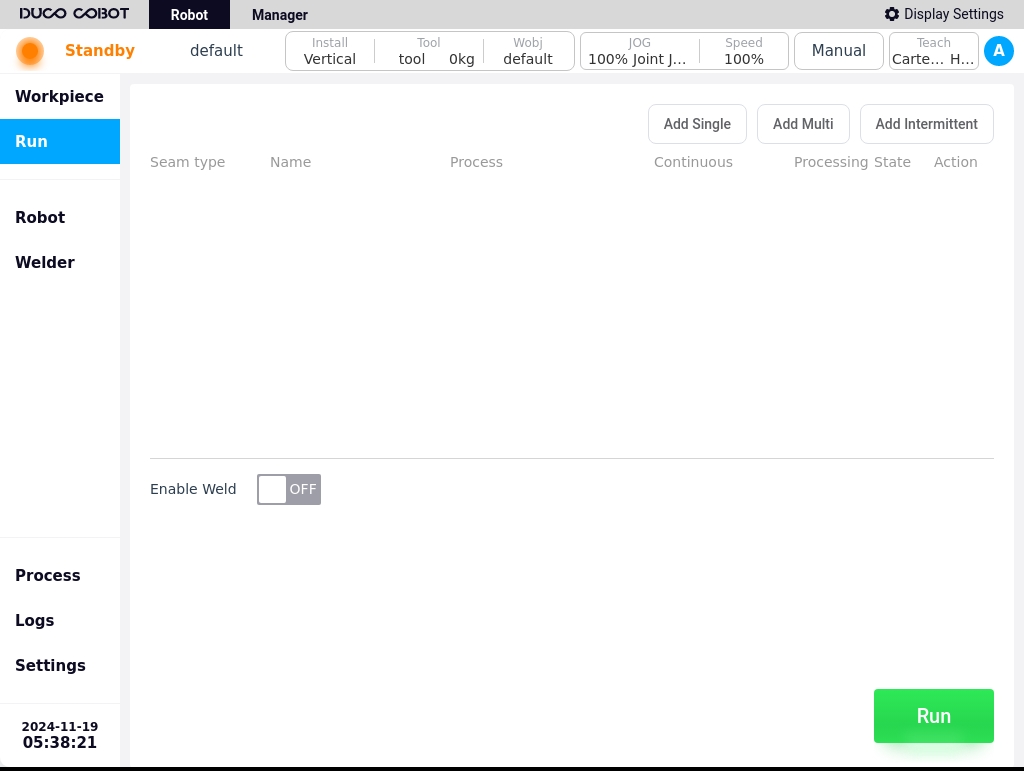

After successfully installing the Welding Process Pack V2 plug-in package, enter the Welding Process Pack V2 software interface. The overall interface of the software is divided into three main areas. The header status bar, the left navigation bar, the right side of the content area, the content area is based on the left side of the navigation bar to choose a different and display the corresponding content.

../../_images/0-1.jpg

Status bar:

  • Displays the status of the entire station, including robot status, welding power supply status, external axis status, and the corresponding operation buttons;

  • Displays the name of the currently open artifact;

  • Displays the robot’s mounting direction and the coordinate system currently in use;

  • Displays JOG speed and type, global speed;

  • Displays the mode of operation, i.e., manual mode or automatic mode;

  • Displays the currently active traction mode;

  • The user’s avatar is displayed and clicking on it displays a drop-down system menu.

Navigation bar:

It mainly includes workpiece management, weld execution, robot control, welder control, process library, task log, basic settings and time display.

Content area:

The content is displayed depending on the selection of the left navigation bar.
