Welding machine settings#

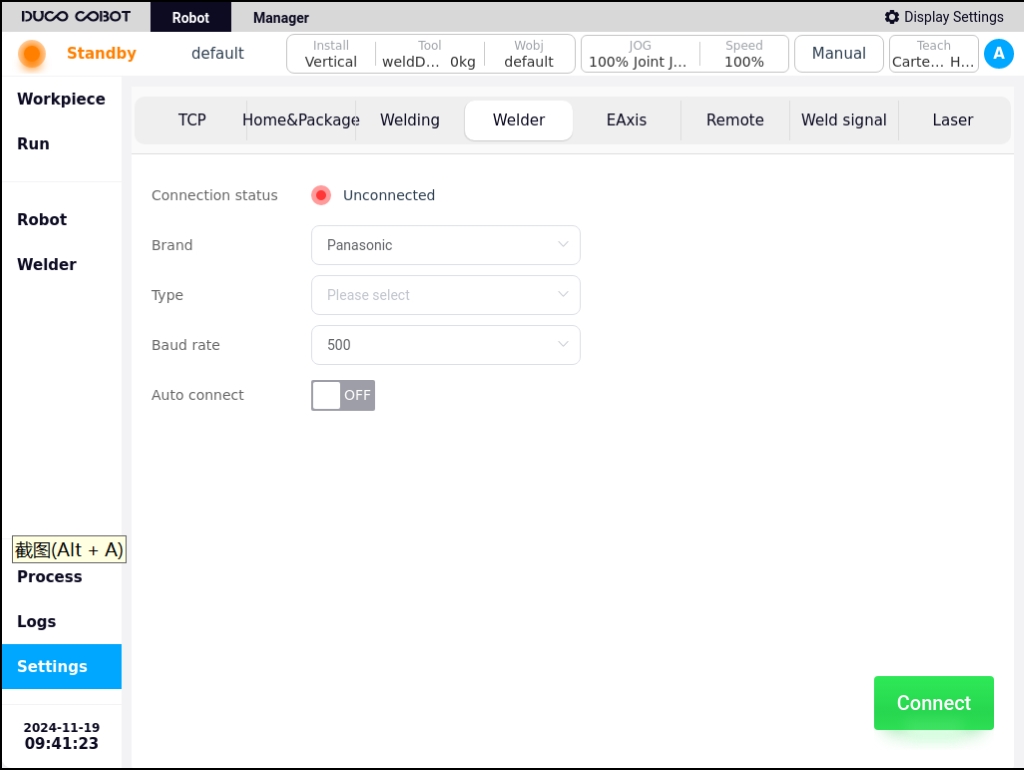

The Welder Settings sub-page is used to display the communication status, configure the welder model and the corresponding communication settings, as shown below.

../_images/8-4-1.jpg

Welder Connection Status: The status indicator will change from red to green when communication is established between the robot and the welder;

Welder Brand: Used to configure the brand of the welder currently being used;

Welder Model: Used to configure the welder model corresponding to the selected welder brand;

Communication Baud Rate: Used to set the baud rate of CAN communication, supporting three baud rates: 125kps, 250kps and 500kps.

Caution

The baud rate of the robot and the welder need to be set the same in order to realize the communication

Auto-connect: Used to automatically connect to the welder the next time the robot is powered on. When auto-connect is turned on, the robot will save the current setup information, the The next time the robot is powered on, it will automatically connect to the welder after the robot completes the power-up operation.

The “Connect” button is usually used when the robot is first commissioned to communicate with the welder. Clicking on the “Connect” button will initiate a connection request to the welder in the welder’s message format. When correct feedback is received from the welder, the welder connection status light will turn green.
